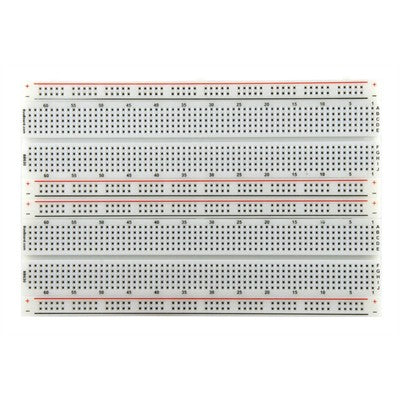

Breadboard 1660 Holes, White (BB1660)

SKU BB1660

Manufacturer: BusBoard

1660 tie points total: 1260 tie-point IC-circuit area plus four 100 tie-point distribution strips providing 8 power rails.
ABS plastic body with black printed legend. Color legend on distribution strips.
Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
Rated at 36 Volts, 2 Amps.
Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
Peelable adhesive tape backing provided for attaching to a surface. Metal back plates provided.
Size: 6.5 x 4.3 x 0.3in (165.1 x 108.6 x 8.5mm)

1660 tie points total: 1260 tie-point IC-circuit area plus four 100 tie-point distribution strips providing 8 power rails.
ABS plastic body with black printed legend. Color legend on distribution strips.
Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
Rated at 36 Volts, 2 Amps.
Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
Peelable adhesive tape backing provided for attaching to a surface. Metal back plates provided.
Size: 6.5 x 4.3 x 0.3in (165.1 x 108.6 x 8.5mm)

< Hide

$20.90 - $20.90

$20.90

$20.90 - $20.90

$20.90

Availability:

In stock

Stock: 2+ QTY

Quantity

Same Day Shipping
for most orders received before 2pm

FEATURES

1660 tie points total: 1260 tie-point IC-circuit area plus four 100 tie-point distribution strips providing 8 power rails.

ABS plastic body with black printed legend. Color legend on distribution strips.

Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.

Rated at 36 Volts, 2 Amps.

Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)

Peelable adhesive tape backing provided for attaching to a surface. Metal back plates provided.

Size: 6.5 x 4.3 x 0.3in (165.1 x 108.6 x 8.5mm)
